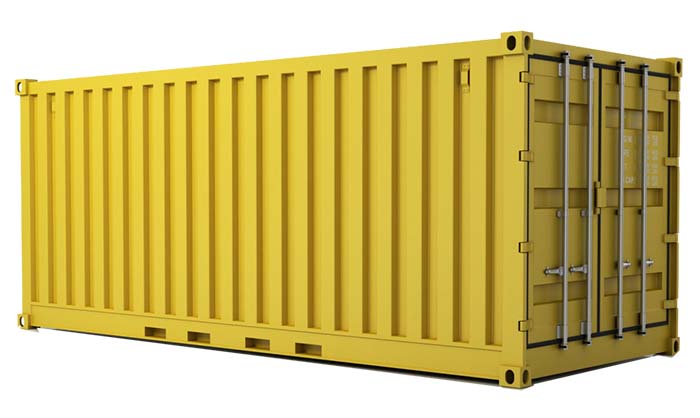

Standard & High Cube

Type	Inside Length	Inside Width	Inside Hights	Door Width	Door Hights	Capacity	Tare Weight	Max. Cargo
20´ mm	5900 mm	2350 mm	2393 mm	2342 mm	2280 mm	33.2 m3	2230 kg	21770 kg
20´ inch	19’44’’	7’8’’	7’10’’	7’8’’	7’6’’	1172 Ctf	4916 Lbs	47900 Lbs
40´ mm	12036 mm	2350 mm	2392 mm	2340 mm	2280 mm	67.7 m3	3700 kg	26780 kg
40´ inch	39’5’’	7’8’’	7’10’’	7’8’’	7’6’’	2390 Ctf	8160 Ctf	59040 Lbs
40´ High Cube	12010 mm	2330 mm	2330 mm	2560 mm	12010 mm	76.2 m3	3968 kg	26512 kg
40´ High Cube	39’5’’	7’8’’	8’10’’	7’8’’	8’5’’	2694 Ctf	8750 Ctf	58450 Lbs

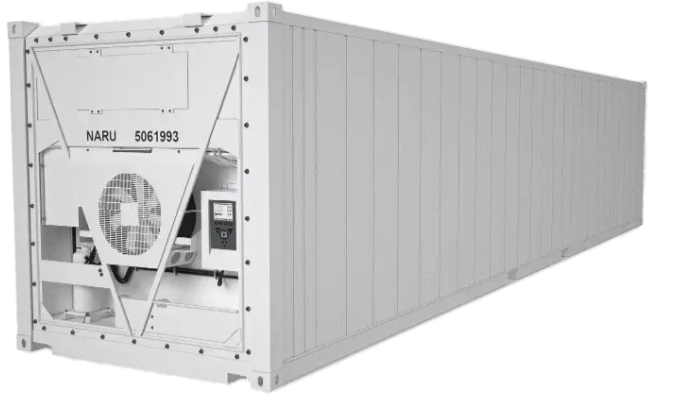

Reefer Containers

Type	Inside Length	Inside Width	Inside Hights	Door Width	Door Hights	Capacity	Tare Weight	Max. Cargo
20´ mm	5452 mm	2275 mm	2260 mm	2258 mm	2216 mm	28.3 m3	3200 kg	20800 kg
20´ inch	17’8’’	7’5’’	7’5’’	7’5’’	7’3’’	1000 Ctf	7040 Lbs	45760 Lbs
40´ mm	11493 mm	2270 mm	2197 mm	2282 mm	2155 mm	57.8 m3	4900 kg	25580 kg
40´ inch	37’8’’	7’5’’	7’2’’	7’8’’	7’0’’	2040 Ctf	10780 Ctf	56276 Lbs
40´ High Cube	11557 mm	2294 mm	2500 mm	2294 mm	2440 mm	66.6 m3	4500 kg	25980 kg
40′ High Cube	37’11”	7’6″	8’2″	7’6″	8’0″	2334 Ctf	9900 Lbs	57561 mm

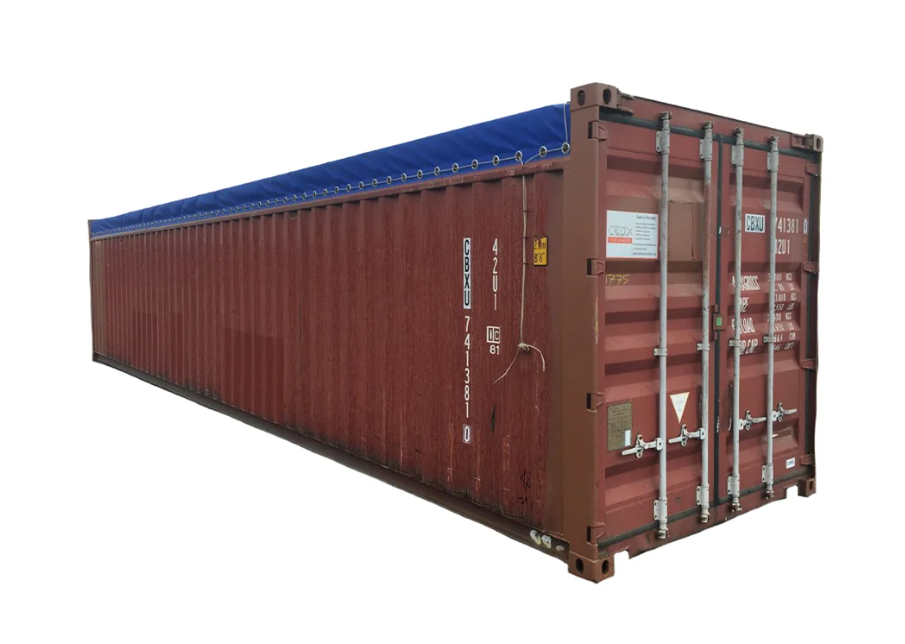

Open Top

Type	Inside Length	Inside Width	Inside Hights	Door Width	Door Hights	Capacity	Tare Weight	Max. Cargo
20´ mm	5894 mm	2311 mm	2354 mm	2286 mm	2184 mm	32.2 m3	2400 kg	21600 kg
20´ inch	19’4’’	7’7’’	7’8’’	7’6’	7’2’’	1136 Ctf	5280 Lbs	47620 Lbs
40´ mm	12028 mm	2350 mm	2315 mm	2341 mm	2274 mm	55.5 m3	3850 kg	26680 kg
40´ inch	39’5’’	7’8’’	7’8’’	7’8’’	7’5’’	2350 Ctf	8490 Ctf	58710 Lbs

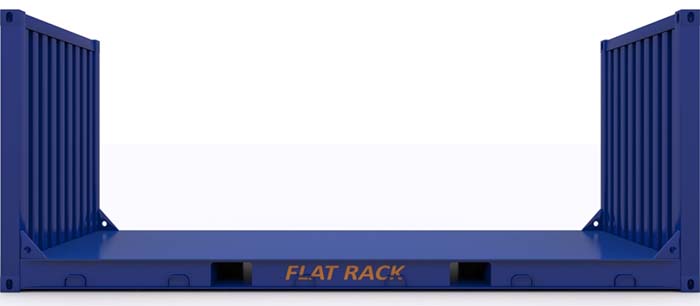

Flat Rack

Type	Inside Length	Inside Width	Inside Hights	Door Width	Door Hights	Capacity	Tare Weight	Max. Cargo
20´ mm	5620 mm	2200 mm	2233 mm	— — —	— — —	— — —	2530 kg	21470 kg
20´ inch	18’5’’	7’3’’	7’4’’	— — —	— — —	— — —	5578 Lbs	47333 Lbs
40´ mm	12080 mm	2438 mm	2103 mm	— — —	— — —	— — —	5480 kg	39000 kg
40´ inch	39’7’’	6’10’’	6’5’’	— — —	— — —	— — —	12081 Ctf	85800 Lbs

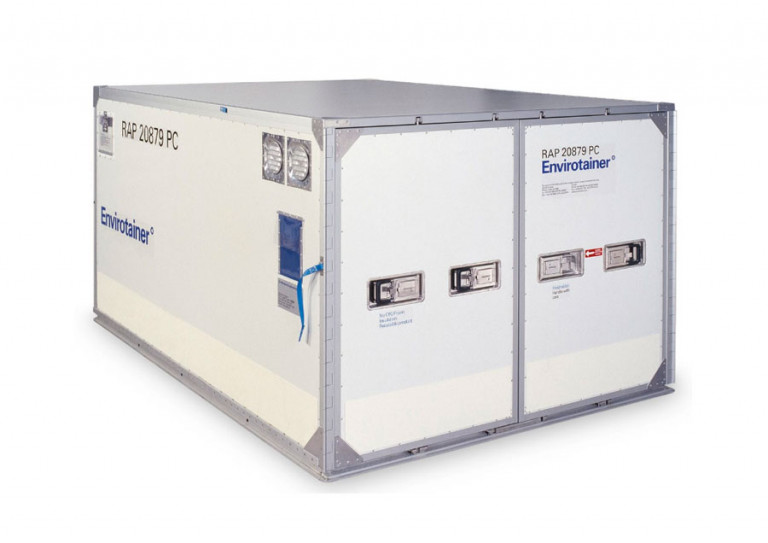

RAP Containers

Label	Value
ATA Code	LD9
Weight Limitation Inc. ULD Tare Weight	4.626 kg
Tare Weight	330 kg
Internal Volume	352 cu.ft.9.2cbm
Loadable Aircraft Type	747,747F,777,330,340

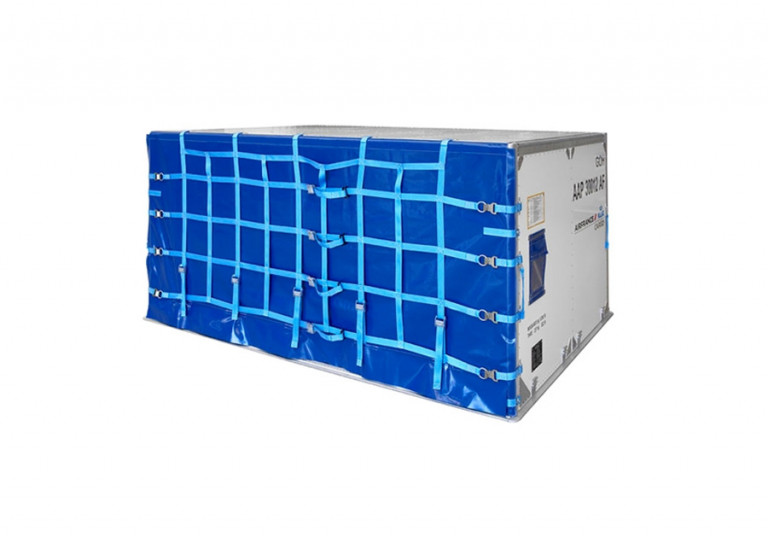

AAP2 Containers

Label	Value
ATA Code	LD9
Weight Limitation Inc. ULD Tare Weight	4.626 kg
Tare Weight	222 kg
Internal Volume	371 cu.ft. 10.51 cbm
Loadable Aircraft Type	747, 747F, 777, 330, 340

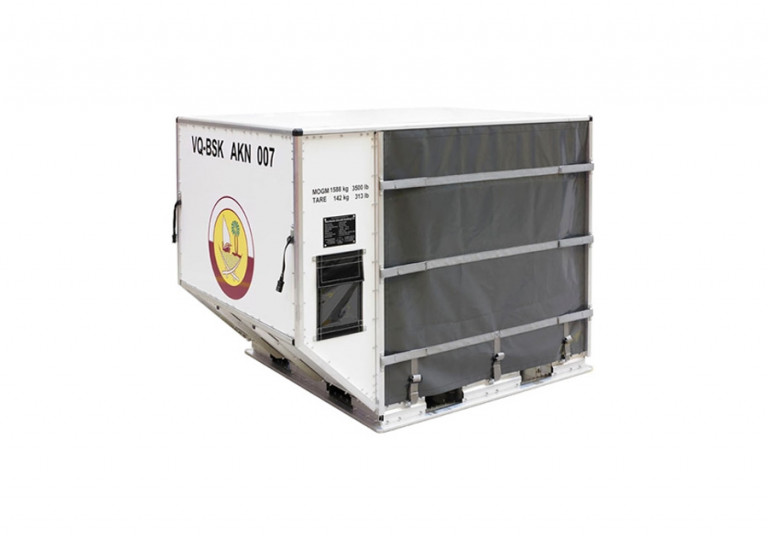

AKE Containers

Label	Value
ATA Code	LD3
Weight Limitation Inc. ULD Tare Weight	1.588 kg
Tare Weight	100 kg
Internal Volume	152 cu.ft.4.3 cbm
Loadable Aircraft Type	747,747,777,330,340

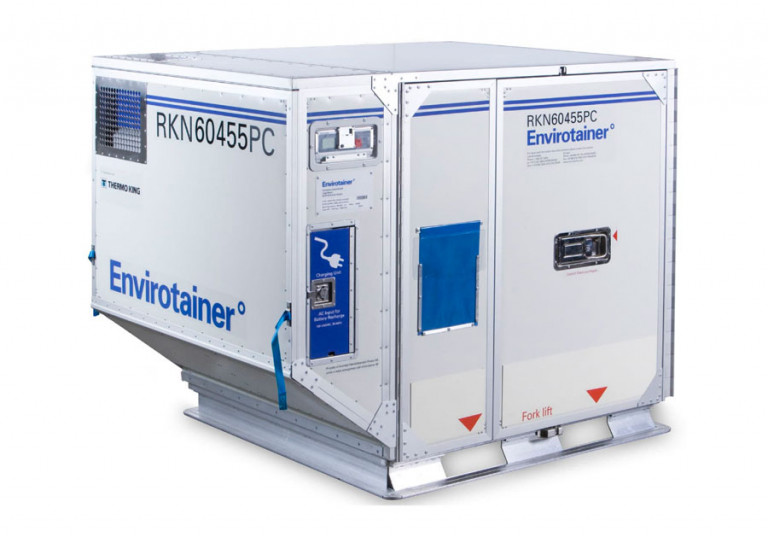

RKN Containers

Label	Value
ATA Code	LD3
Weight Limitation Inc. ULD Tare Weight	1.588 kg
Tare Weight	190 kg
Internal Volume	125 cu.ft.3.55 cbm
Loadable Aircraft Type	747,747,777,330,340

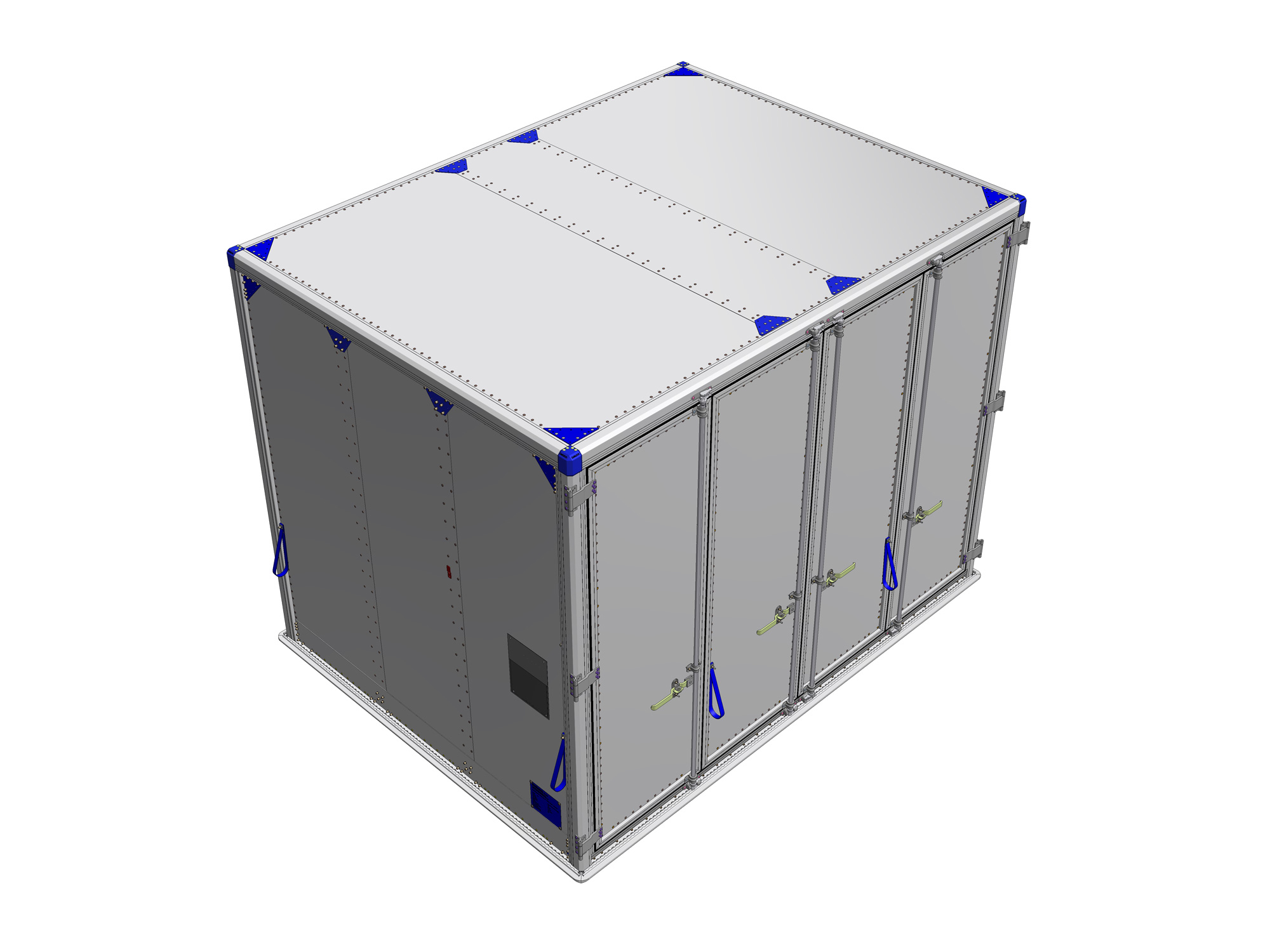

AMA Containers

Label	Value
ATA Code	M1
Weight Limitation Inc. ULD Tare Weight	6.804 kg
Tare Weight	360 kg
Internal Volume	621 cu.ft.17.58cbm
Loadable Aircraft Type	747F

P7E, PGA Pallet

Label	Value
Size	Base: 96″x238,5″ Hight: 96″ (06 Contour), 118″ (Q7 Contour)
Weight Limitation Inc. ULD Tare Weight	11.340 kg
Tare Weight	480 kg
Loadable Aircraft Type	747F

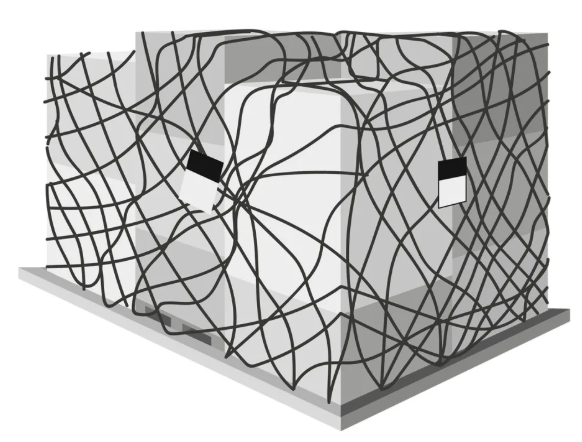

P1P, PAG Pallet

Label	Value
Size	Base: 88’x125″ Hight: 64″ (Passenger flight), 96″ (Q6 Contour), 118″ (Q7 Contour)
Weight Limitation Inc. ULD Tare Weight	4.626 kg(LD), 6,033 kg
Tare Weight	105 kg
Loadable Aircraft Type	747,747,777,330,340
